1. Create network.
    • Under Network→Networks click the "Create Network" button
    • Fill out the "Network Name" field with the name of the network.
    •
    • Click Next or click on "Subnet" Tab.
    • Fill out the "Subnet Name" field with the name of the subnet.
    • On the "Network Address Source" field select "Allocate Network Address from a pool".
    • On the "Address pool" field select ipv6 pool.
    • Select IP version: IPv6. Leave network mask as default.
    • Cick "Next" to "Subnet Details" tab, where You are able to add custom configuration of DHCP allocation pools, DNS servers and static routing.
    • From "IPv6 Address Configuration Mode" field select one of:
      • SLAAC: Address discovered from Openstack Router
      • DHCPv6 Stateful
      • DHCPv6 Stateless
    • Click "Create".

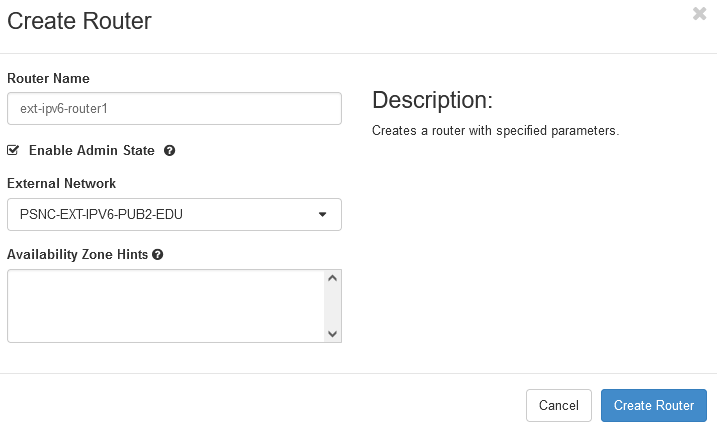

  2. Create Router.
    • Under Network→Routers click the "Create Router" button.
    • Fill out the "Router Name" field with the name of the router.
    • Pick "External Network" and choose "PSNC-EXT-IPV6-PUB2-EDU" network to connect the router to the public network.

    • Click "Create Router"

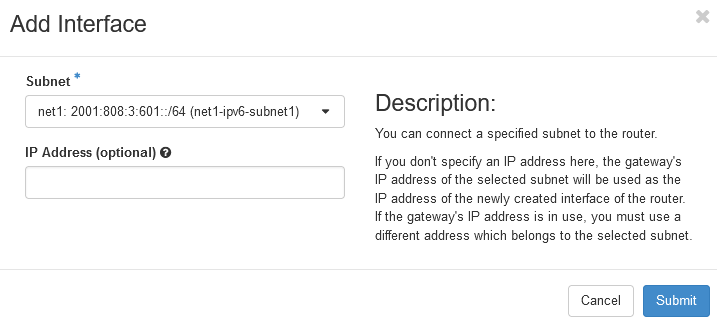

  3. Attach the Network to the Router.
    • Click on the previously created router or select arrow and choose "Edit Router" on the right context menu of the router.
    • Click "Interfaces" tab.
    • Click "Add Interface".
    • Pick previously created subnet in the "Subnet" list.
    • Click "Submit".
